Solar System Door Opener Heavy-Duty 500KG Automatic Sliding Door Opener with 4m Nylon Rack
Description:
Upgrade your home or business with our Solar System Door Opener, designed for heavy-duty performance and convenience. This automatic sliding door opener comes with a-4-meter-long nylon rack, ensuring smooth and efficient operation. Equipped with induction and GSM technology, it offers advanced security and control features for added peace of mind.
This DC24V-powered sliding gate opener is designed to operate sliding gates up to 500 kg in weight. It is an all-in-one motor and control panel, making it simple to install and extremely compact and neat.
1.Weatherproof
2.Manual Override
3. All metal gears
4. Metal Gear Drive
5. All in one internal Motor and weather-proof control panel
Functions of sliding gate motors
1. totally integrated electrical and and mechanical system (the number of racks is optional ).
2. Control board interface for optional impact-proof infrared photocells.
3. Can connect flashing light, keypad, electric lock and so on.
4. Automatic delayed closing.
5. Adjustable resistance sensitivity.
6. Auto-gates stop and re-open when an obstacle is encountered.
7. Wireless remote control or wired remote control are optional.
8. 24VDC sliding gate opener can connect transformer and back up battery.
Features of motor controller
1. low noise, light weight, powerful starting torque, stability, reliability and being compact and stylish.
2. Can I adjust the output power of motor?
3. Can I adjust the working time of motor?
4. Can I program the time of auto-closing?
5. Can set auto-close when restored power after power off.
6. A sliding gate opener can connect flashing light, photocell,keypad.electric lock.
Parameters：
1. Working temperature of motor: -25°C～ +55°C
2. Working humidity: ≤85%
3. Power supply: DC24V
4. Motor voltage: 24VDC
5. Rated power: 200W
6. Output gear module: M = 4
7. Output gear number: Z = 16.
8. Open(close) speed：v=12m/min
9. Rated-speed : 1400 RPM
10. Maximum pull: 1100N
11. Maximum load: 500 kg
12. Net weight: 10 kg
13. Remote control distance : ≤50 m
14.Packing : In carton
Appearance and dimensions
Product Description:
*Note: If it is dual gate, you need two motors

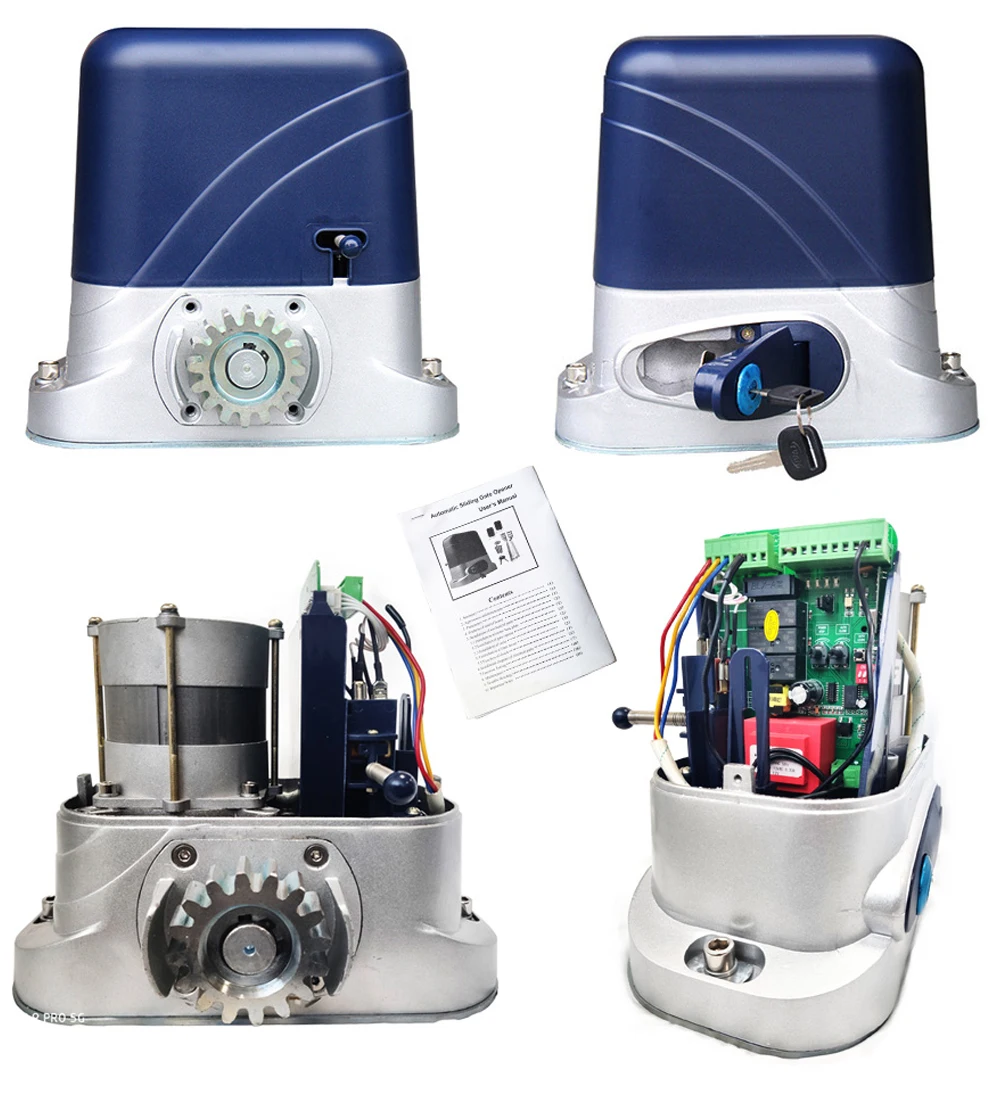

Internal structure display
This equipment is one of the gate openers launched by our company, which has adopted a new design and integrated control system.This sliding gate opener has many features, such as: low noise, light weight, powerful starting torque, stability, reliability and being compact and stylish.
1) Spring limit switch.
2) Low-noise, high-speed pure copper motor.
intelligent control board.
*For electronic installation manual, please contact the seller Email: kingjoin85@sina.com

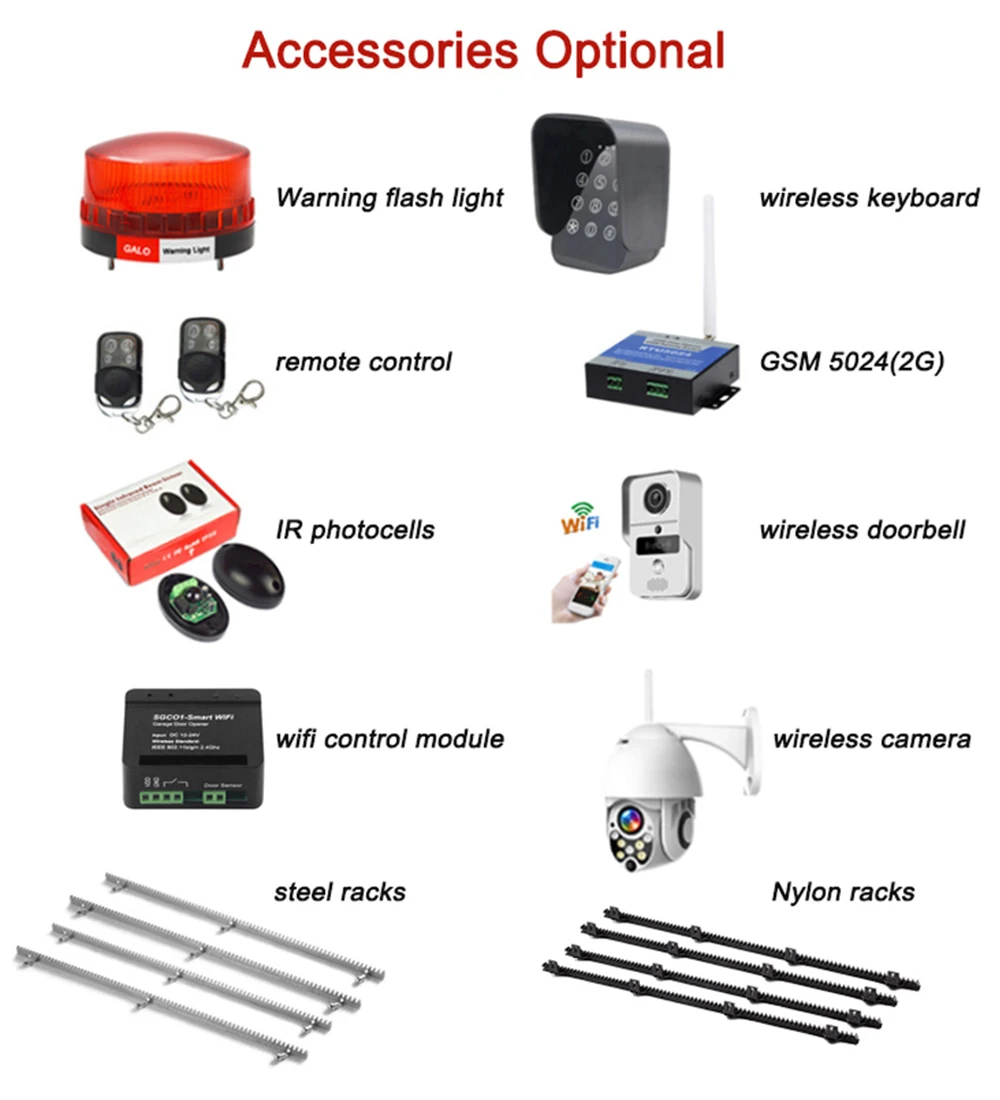

Optional accessories

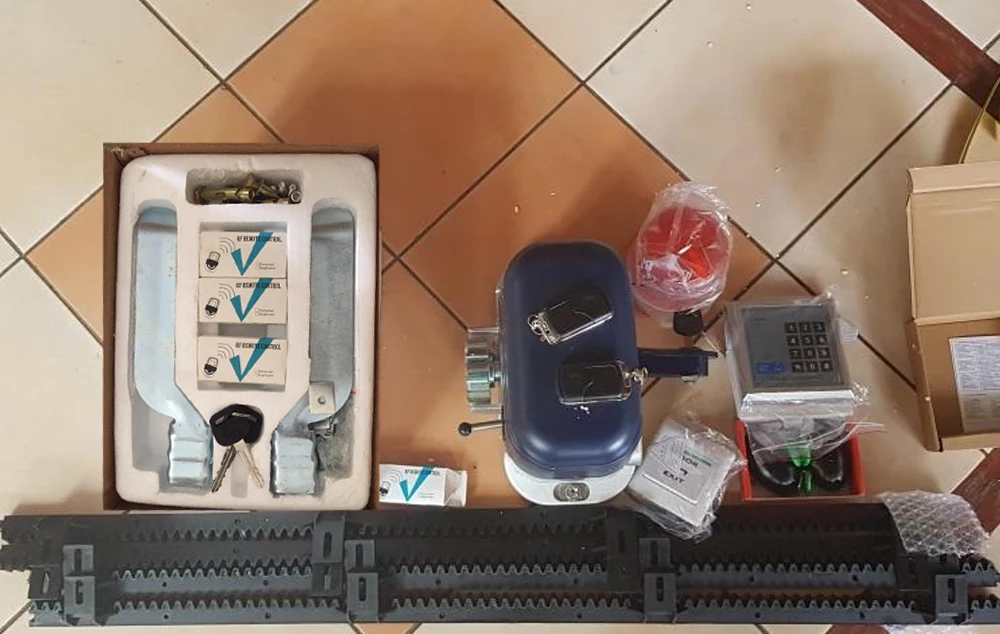

The color kit and package list will be shown in the photo.
Support for solar systems (optional accessories)
Can be plugged into a solar system, using a home circuit, or solar powered. Note that we cannot transport the batteries and that you need to prepare the batteries yourself.

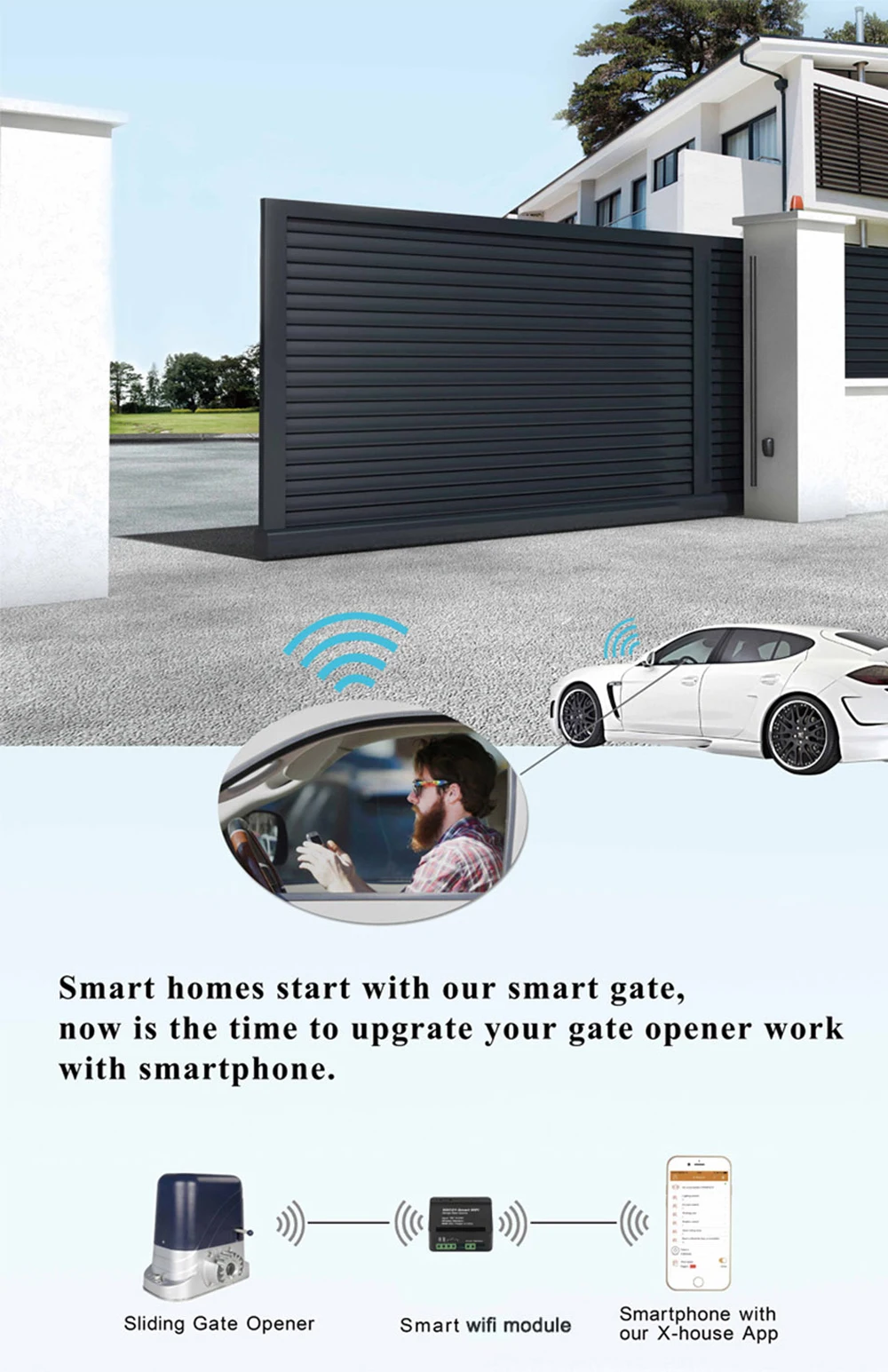

wifi control phone to open door
Select the wifi module. In a wireless network environment, you can use the remote to open the door, and the mobile app controls
| Weight | 35 kg |
|---|---|
| Dimensions | 28 cm |
| Brand Name | WEYJIOIN |
| Origin | Mainland China |
| Model Number | PYM |
| Certification | CE |
| Direction | None |
| Security Mode | Fail Secure with Signal |
| Input | DC 24V |
| Warning | Light door, MAX 500kg |
| auxiliary system | Solar System |
| Adapt to the environment | outdoor(no AC power)use |
| remote control duplicator | Non-copyable, cryptographically secure |
| support | rtuGSM5024 |
| sliding gate | Steel rack |
| automatic door motor | motor puerta |
| sliding door automatic | motor puerta corredera |
| countenance | Sliding gate opener door |
| wifi control | AUTO gate opener |
| work with | door lock |
| use for | home gate door garage |
