Rechargeable 683 Smart Multimeter Digital 6000 Counts Multi-Tester
Upgrade your electrical testing experience with the 683 Rechargeable Smart Multimeter, featuring a 6000-count display for high-accuracy measurements. This versatile multitester supports AC/DC voltage, current, resistance, and diode testing, making it an essential tool for electricians, engineers, and hobbyists. The touchscreen interface provides effortless navigation, while the built-in rechargeable battery ensures long-lasting performance. Perfect for home, workshop, or industrial use, this advanced multimeter guarantees reliable and precise results.

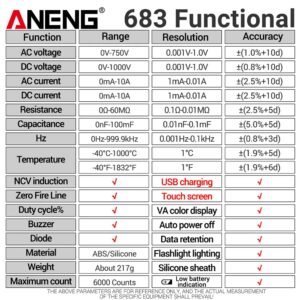

Specification:

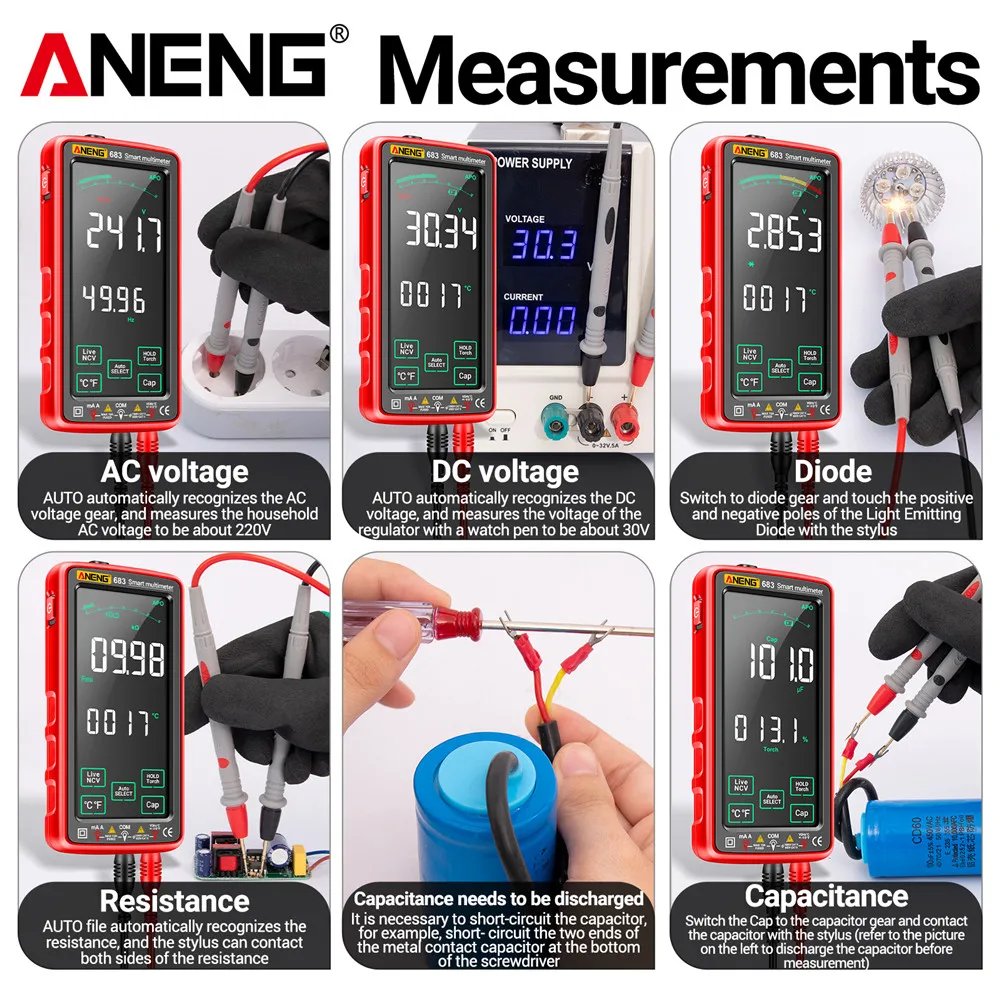

DC Voltage:
| Measuring Range | Resolution | Accuracy |
| 6V/60V | 0.001V/0.01V | +-(0.5% readings + 3 digits) |
| 600V/1000V | 0.1V/1.0V | +-(0.8% readings + 10 digits) |
AC Voltage:
| Measuring Range | Resolution | Accuracy |
| 6V/60V | 0.001V/0.01V | +-(0.8% readings + 3 digits) |
| 600V/750V | 0.1V/1.0V | +-(1.0% readings + 10 digits) |
AC and AC Current
| Measuring Range | Resolution | Accuracy |
| 6000 mA | 1 mA | +-(1.0% readings + 5 digits) |
| 10A | 0.01A | +-(2.5% readings + 10 digits) |
Resistance
| Measuring Range | Resolution | Accuracy |
| 600Ω/6kΩ/60kΩ/600kΩ | 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ | +-(0.8% readings + 3 digits) |
| 6MΩ | 0.001MΩ | +-(1.2% readings + 3 digits) |
| 60MΩ | 0.01MΩ | +-(2.5% readings + 5 digits) |
Capacity
| Measuring Range | Resolution | Accuracy |
| 60nF/60nF/6uF/60uF/600uF/6mF | 0.01 nF/0.1 nF/0.001 uF/0.01 uF/0.1 uF | +-(4.0% Readings + 20 digits) |
| 60 mF | 0.01 mF | +-(5.0% readings + 5 digits) |
| 100 mF | 0.1 mF | for reference |
Frequency
| Measuring Range | Resolution | Accuracy |
| 9.999 Hz/99.99 Hz/999.9 Hz | 0.001 Hz/0.01 Hz/0.1 Hz | +-(0.8% readings + 3 digits) |
| 9.999 kHz/99.99 kHz/999.9 kHz | 0.001 kHz/0.01 kHz/0.1 kHz | +-(0.8% readings + 3 digits) |
Temperature
| Measuring Range | Resolution | Accuracy |
| -40℃-300℃ | +-(1.0%+4d) | 1℃ |
| 301°C-1000°C | +-(1.9%+5d) | 1℃ |
| -40 °F -600 °F | +-(1.2%+6d) | 1°F |
| 601 °F -1832 °F | +-(1.9%+6d) | 1°F |
| Diode Test | Yes | Circuit on/off Test | Yes |
| Data Hold | Yes | Automatic power off | Yes |

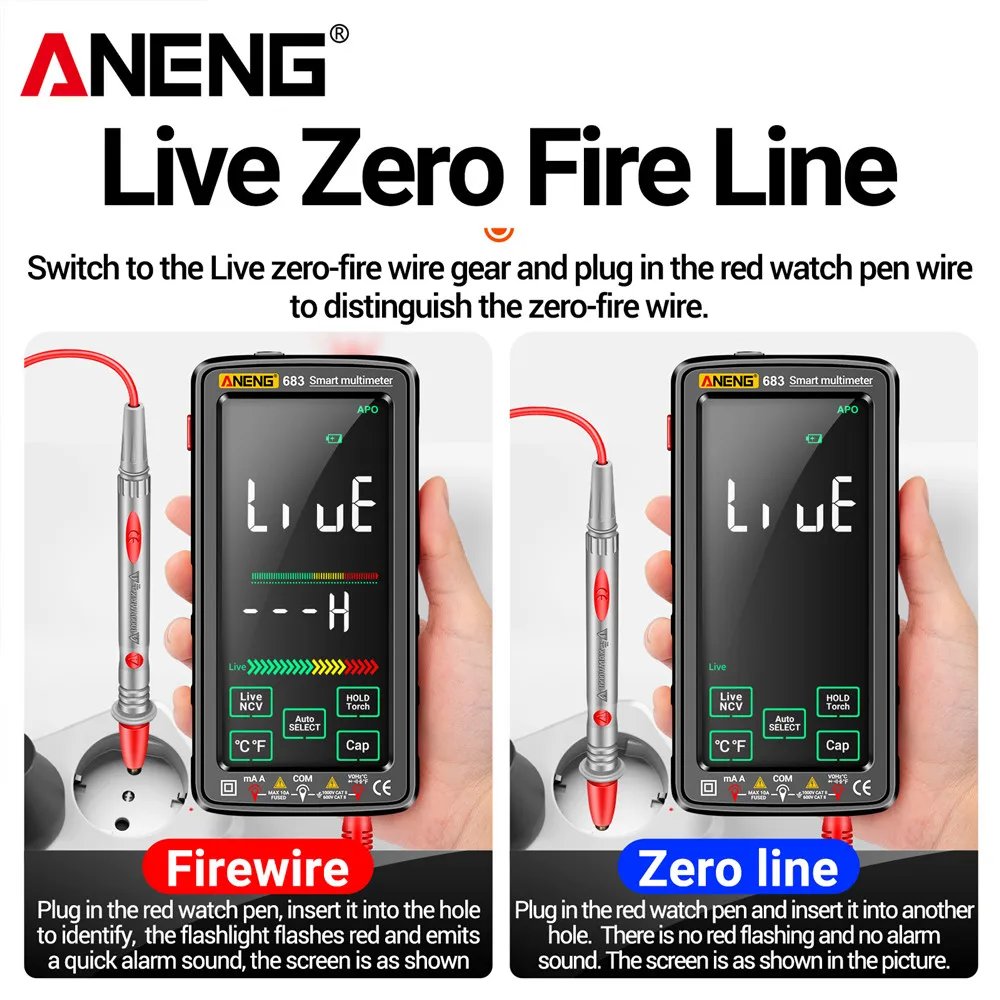

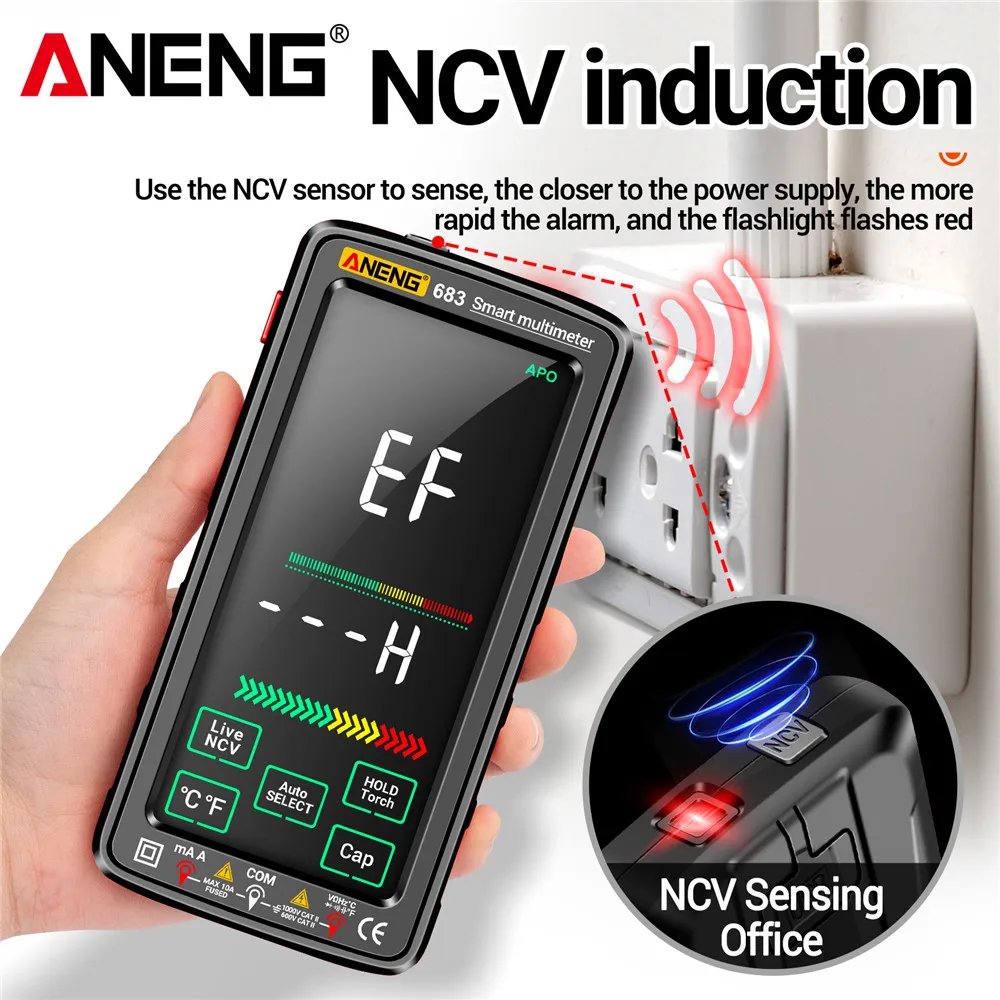

| Torch | Yes | NCV Test | Yes |
| Buzzer | Yes | Firing line Test | Yes |
Package Included:
As the picture showed
