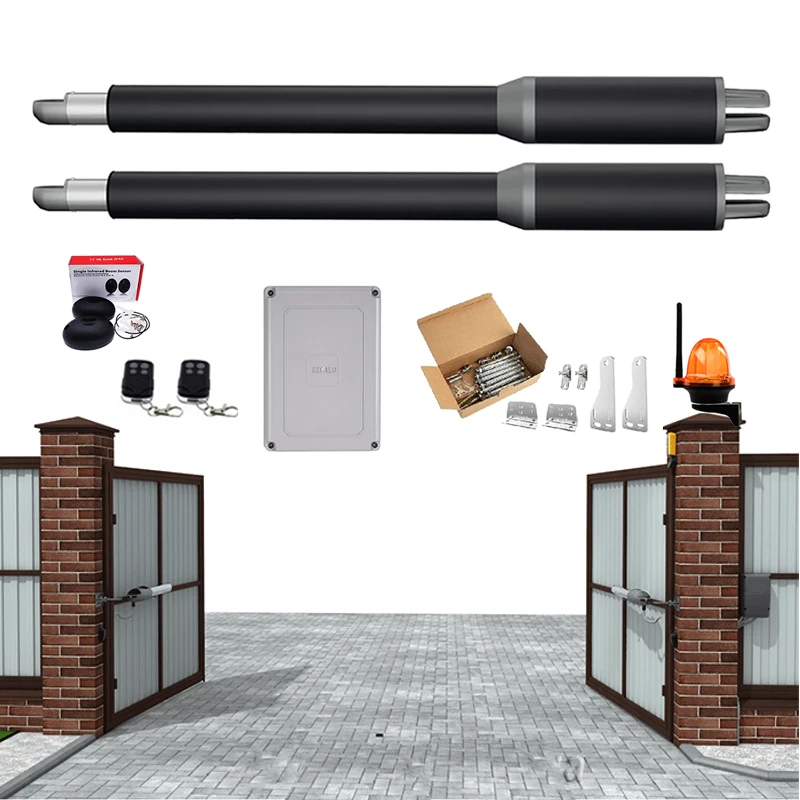

Effortless Entry Dual Gate Openers Engine Motor System AC220V/AC110V Swing Gate Driver

Effortless Entry Dual Gate Openers Engine Motor System AC220V/AC110V Swing Gate Driver

Description: Experience effortless entry with our Dual Gate Openers Engine Motor System! Designed for swing gates, this AC-powered opener provides smooth and reliable operation for both residential and commercial applications. With its advanced motor system, it ensures quiet and efficient gate movement. Perfectly suited for various gate types, this opener offers convenience and security at your fingertips. Upgrade your property with our reliable gate opener solution today.

Product Feature:
1.Easy to install and operate, and easy to connect wired.
2.Open and close the gate by remote control and keypad.
3.Time promotion function. When open gate, the speed is slow, then a little quick, and when close the door, speed is slow again.

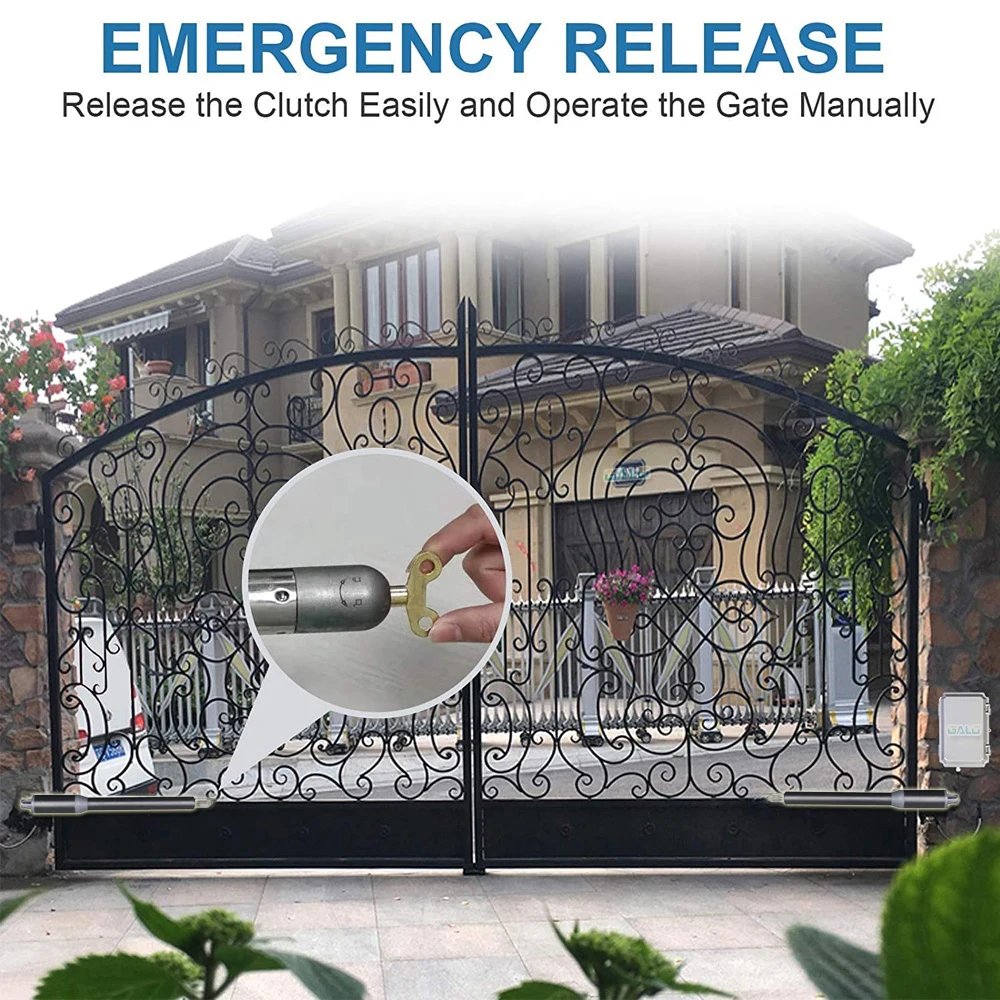

4.In case of power failure, release the clutch easily, and can operate the gate manually.
5.Stop working when the gate meets with obstacle.
6.Rod’s max travel is 300mm.
7.Motor’s Power: 24VDC 40W
8.Running Speed :1.6cm/s
9.Run travel: 300mm
10. Max single leaf gate width: 2.5M
11.Max single leaf gate weight: 250KG

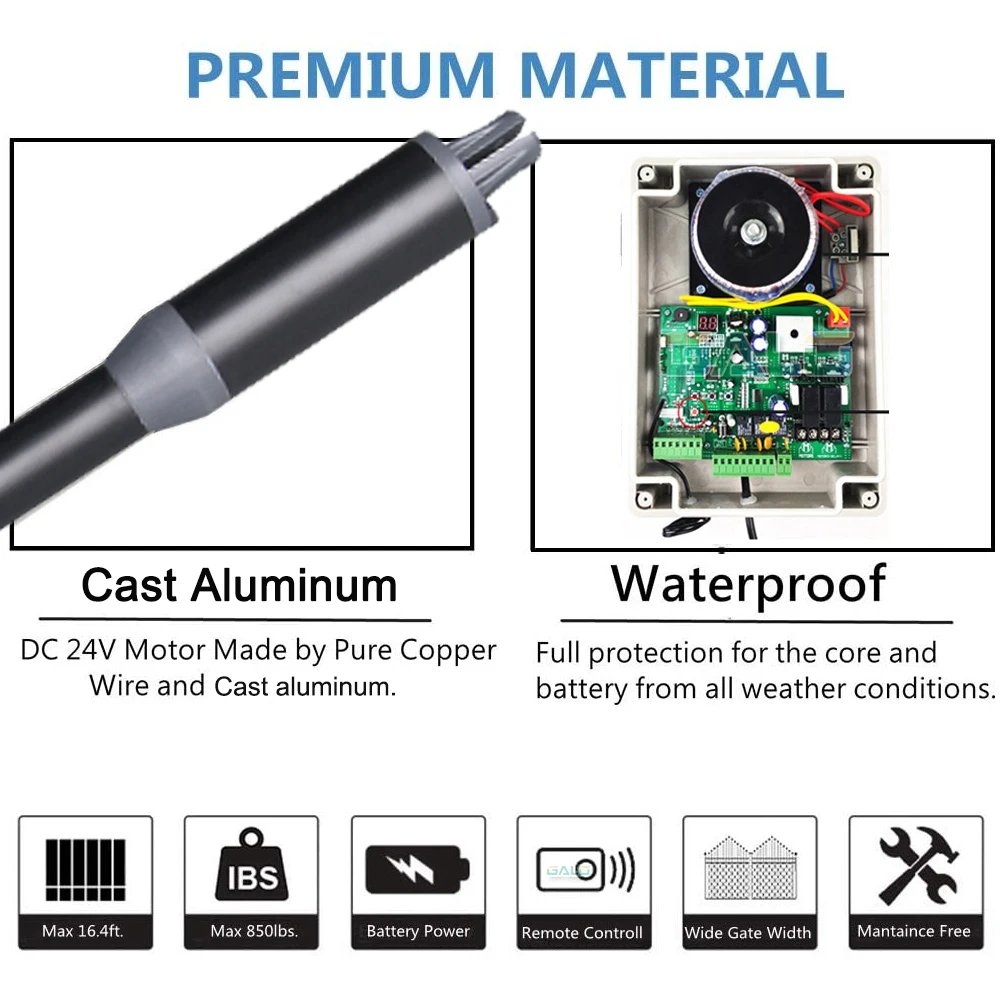

Smart Control Center
Function indication of corresponding port

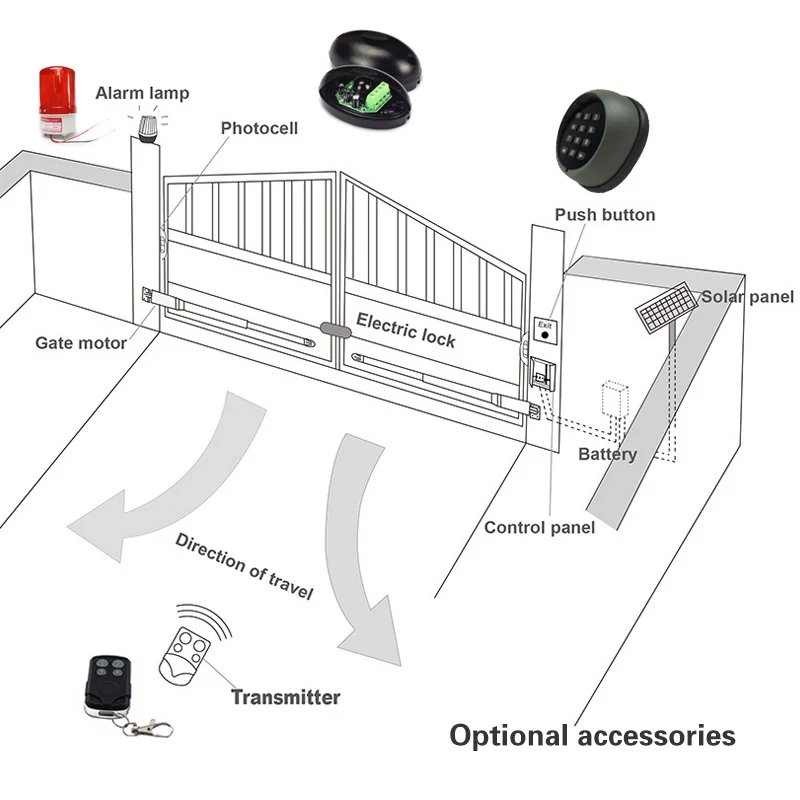

1. 2 SIDE terminal is used for connecting any external device that operates double gate
2. COM terminal is COMMONLY used for connecting the ground” of external devices
3. 1 SIDE terminal is used for connecting any external device that operates single gate
4. Swipe Card terminal is used for connecting any external devices that will operate to open the gate
5. COM terminal is COMMONLY used for connecting the ground” of external devices

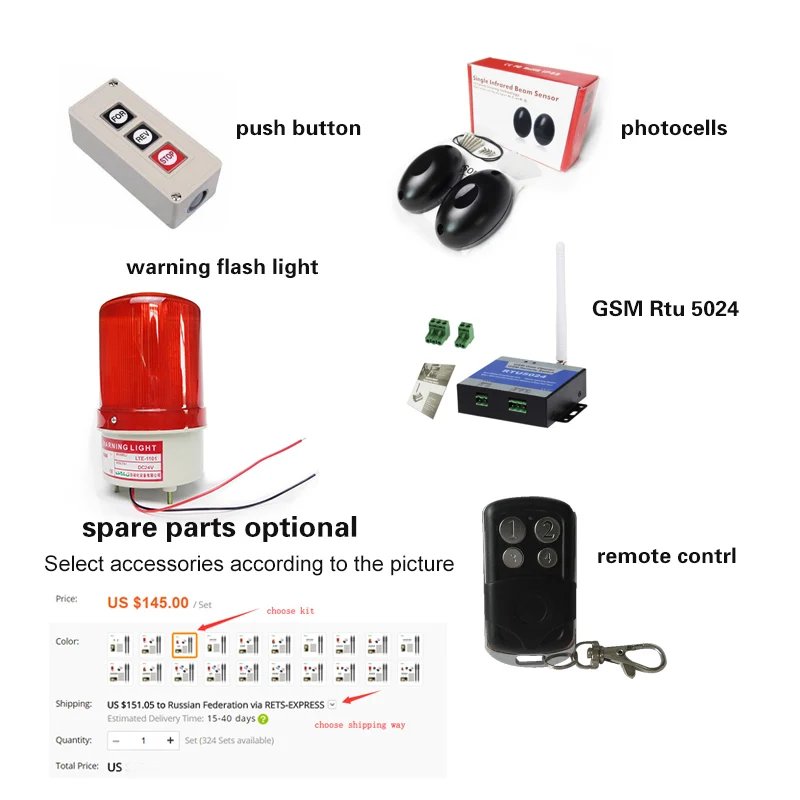

6. Infrared terminal is used for connecting photo electric sensor
7. 12V DC output is used for connecting photo electric sensor (Continuous output current <=200mA)
8. 24V battery output is used for connecting the backup battery +
9. 24V battery output is used for connecting the backup battery –
10. 24V DC output is used for connecting external devices. (such as photo electric sensor, max current output 1A)
11. GND is used for connecting the ground” of external devices
12. 24V DC lamp output is used for connecting flash light +.
13. 24V DC lamp output is used for connecting flash light -.
14. 24V DC lock output—the NF terminal which used for connecting the electric lock
15. COM is COMMONLY used for connecting the ground” of lock
16. 24V DC lock output—the NA terminal which used for connecting the magnetic lock
17. 24V DC alarm output
18. 24V DC alarm output
19. and 20. Motor1 terminal is used for connecting motor 1 installed on the gate that opens later and closes first. This terminal connects 1st red wire (counted from your left-hand side to right hand side)
21. and 22. Motor2 Delay terminal is used for connecting the motor 2 installed on the gate that opens first and closes later. This terminal connects the 1st blue wire (counted from your left-hand side to right hand side). NOTE! If it is a single gate, the gate motor can just connect to the Motor2 Delay terminal.
23. AC24V input is used for connecting the transformer
24. AC24V input is used for connecting the transformer
25. digital display is used for showing you the setting data
26. INC+ is used for figure increase when setting the data
27. FUN is used for store the data
28. DEC- is used for figure decrease when setting the data
29. Learning button is used for program/remove remote
